Everything on the Kent M1’s communication side: the 16-way terminal strip, the RJ45 ports, the DIP switches that set bus termination, and the physical datalogger fitting. Get the DIP positions and cable labels right before power-up — swapping the BMS and parallel cables after commissioning costs a full re-visit.
For trained and authorised installers only.

​
The 16-way terminal strip

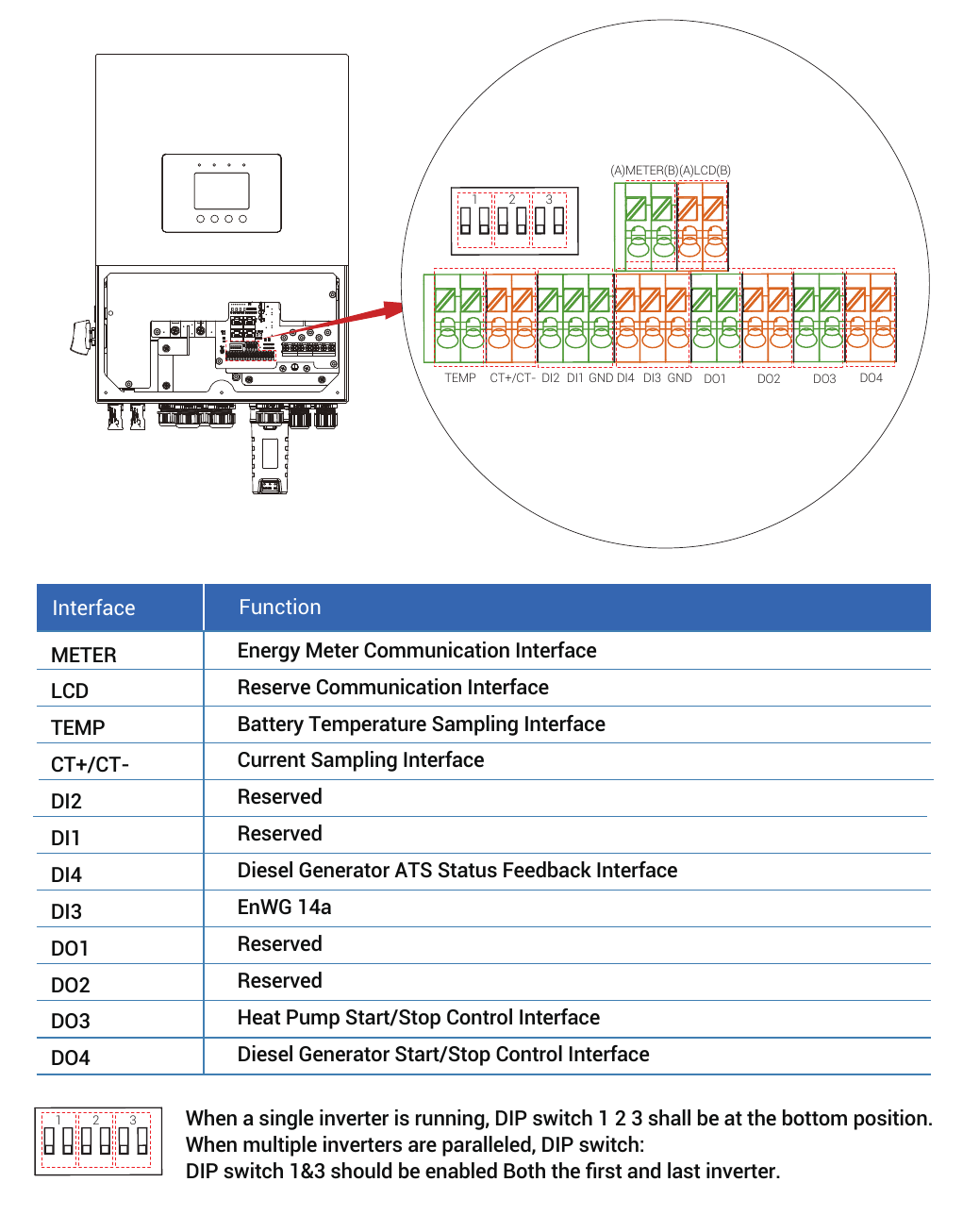

The communication strip sits inside the unit alongside a 3-way DIP switch. Land all signal wires here:
TerminalsFunction
METER (A) / (B)Energy-meter RS485
LCD (A) / (B)Reserved comm interface
TEMPBattery temperature sensor (lead-acid PT1000)
CT+ / CT−CT current sampling
DI4Diesel-generator ATS status feedback
DO4Diesel-generator start/stop dry contact
DO3Heat-pump start/stop control
DI1 / DI2 / DO1 / DO2Reserved

​
RJ45 ports and pinouts

There are three RJ45 ports on the unit. They look identical — label every cable at both ends before you route them. BMS port (battery communication):
PinSignal
Pin 4CAN-H
Pin 5CAN-L
Other pinsUnused
The Kent Lithium Battery requires the labelled 4-5 crossover cable — a standard straight patch lead will not communicate. See Battery Wiring for the full explanation. Parallel 1 / Parallel 2 ports (inverter-to-inverter CAN):
PinSignal
Pin 3Para-CAN-H
Pin 6Para-CAN-L
DRM port: demand-response dry-contact port for specific export markets. Leave unused in India unless a Kent parameter sheet instructs otherwise.

​
DIP switches

The 3-way DIP switch sits beside the 16-way strip:
Installation typeDIP 1DIP 2DIP 3
Single inverterDown (off)Down (off)Down (off)
First inverter in parallel chainOn—On
Last inverter in parallel chainOn—On
Middle inverters in parallel chainDown—Down
In a parallel system, switches 1 and 3 must be enabled on both the first and the last inverter in the chain. These are bus-termination resistors — missing them causes intermittent parallel communication faults that are hard to trace.

​
Parallel systems

To commission a parallel system:
  • Daisy-chain the Parallel 1/2 ports between units using labelled CAN cables.
  • Designate one unit as Primary — this unit holds the CT. All others are Secondary.
  • Enable the parallel switch, set the unit count, and assign master/slave role in the Advanced menu.
  • Each inverter keeps its own AC breakers and battery DC breaker per the breaker schedule.
Pending Kent validation — do not design beyond published examples. [KNB-VAL-11] The maximum Kent M1 parallel unit count is under confirmation. Until published here, do not design Kent M1 parallel systems beyond the source manual’s published examples.

​
Datalogger stick

Plug the supplied WiFi datalogger into its port on the unit. Do not remove the soft rubber SETTING button on the dongle body. That is the entire field job — the stick is activated with Kent Central Command — documentation to follow. Do not configure the unit from an app; the LCD handles all commissioning on this platform.

​
Common mistakes

  • DIP switches 1 and 3 left down on chain-end inverters — intermittent parallel comm faults that “come and go.”
  • BMS cable and parallel cable swapped — both are RJ45 connectors. Label every cable.
  • Attempting configuration from a phone app — this platform commissions fully from the on-device LCD.

​
When to escalate

Escalate to Kent New Energy service only — through your registered Kent partner channel or the Kent service desk details on your work order. Do not contact any third-party or component-manufacturer support line for a Kent-branded system: tickets outside the Kent channel are not tracked, not covered, and can void warranty handling.
